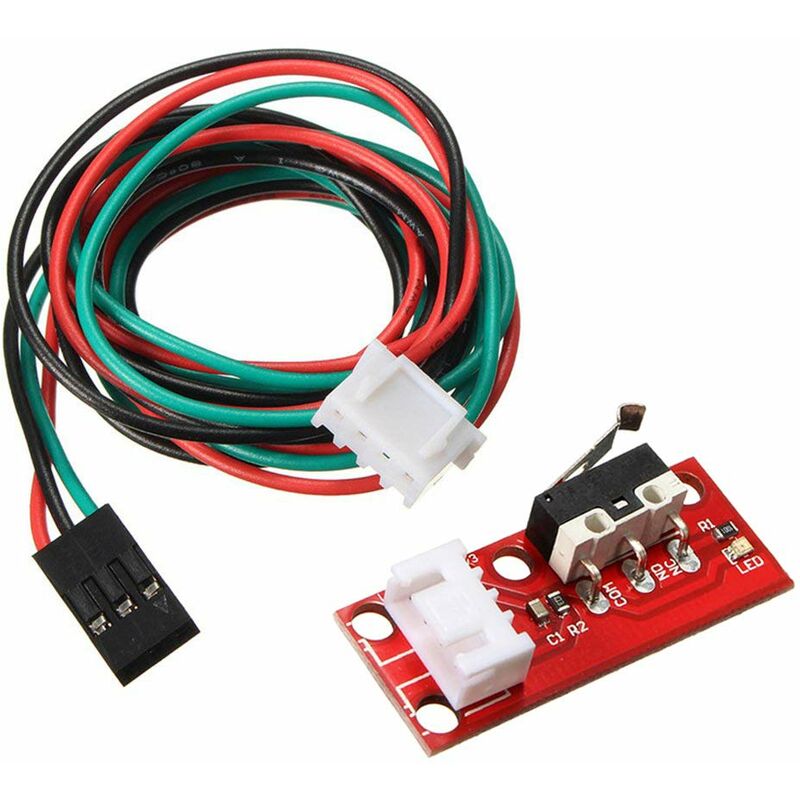

【3-Pin Wires】Plug and play.
No need to solder.
Red wire - VCC (RAMPS), Black wire - GND (RAMPS -), Green wire - SIGNAL (RAMPS S).
【Reliable Design】Limit switch using 22AWG wire, the copper wire inside is thick and can withstand 2A current, 300V voltage.
【Easy Installation】Mechanical endstop triggered by a simple mechanical switch.
the other side of the plug to make a whole, can be inserted directly to use.
【Wide Usage】Limit switch is for RepRap 3D printers or CNC machines, it is supported by RepRap electronics, RAMPS 1.4 and other popular RepRap boards.

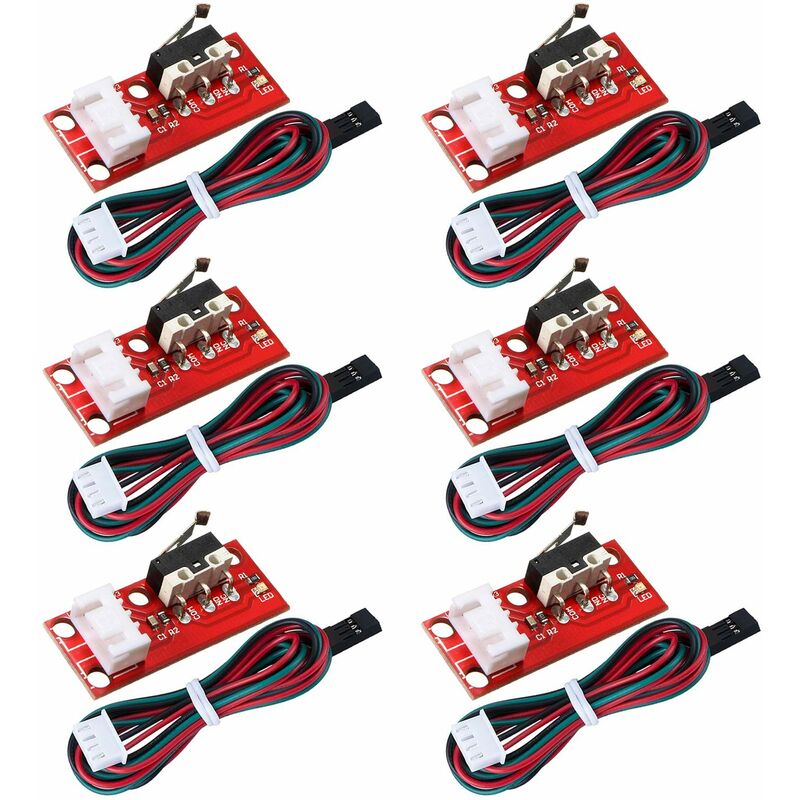

【Package Contents】6 x 3D Printer Limit Switch.

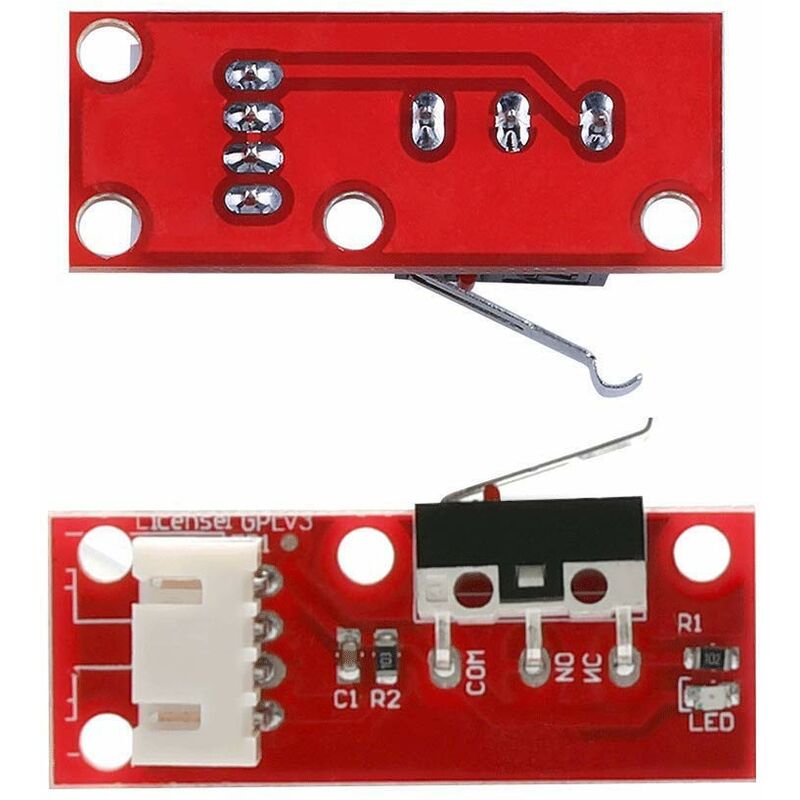

- Features: Plug-and-use Mechanical Endstop Switch with LED indicators
The cable is 22AWG cable, the internal copper cable is thicker than ordinary cable, can withstand 2A current, 300V voltage.
The insulation layer has a wide temperature range of up to 80 degrees.
The connection cable is not easy to break, and plugging and unplugging is also convenient.
is intended for RepRap 3D printers or CNC machines, it is supported by RepRap electronics, RAMPS 1.4 and other popular RepRap boards.

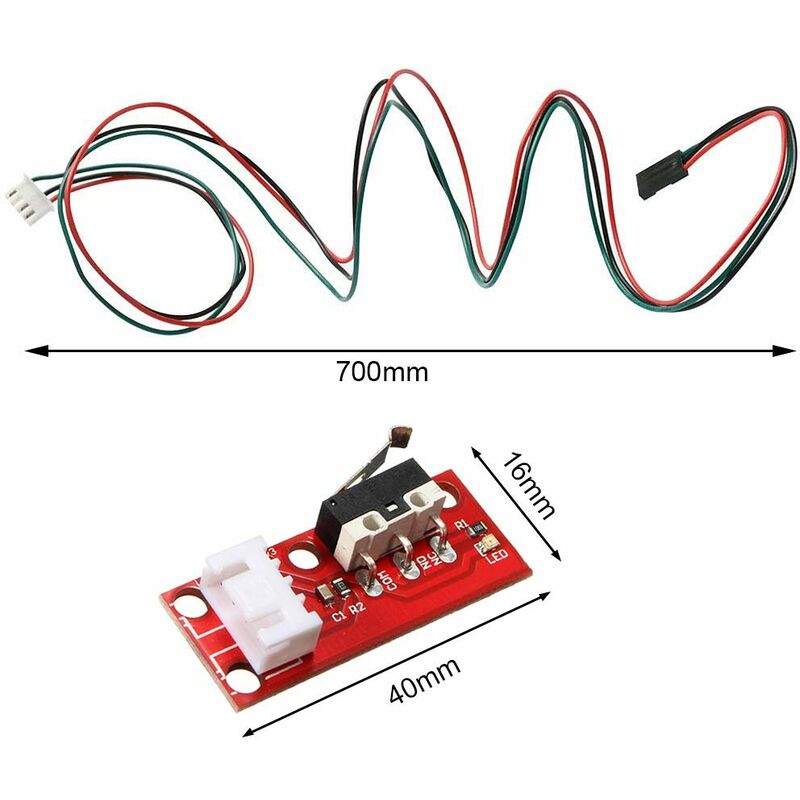

- Specifications: Wire Type: 22AWG Working Voltage/Current: 300V/2A Temperature Resistance: 80 Degree Centigrade Cable Length: 70cm Size: 40 x 15mm Tips: Under normal circumstances, the system should be configured for at least three mechanical switches
- Connection Description: Red Wire - VCC (RAMPS) Black Wire - GND (RAMPS -) Green Wire - SIGNAL (RAMPS S) Package Contents: 6 * Limit Switch 6 * 3Pin Cable 70cm
