Description
Key Features

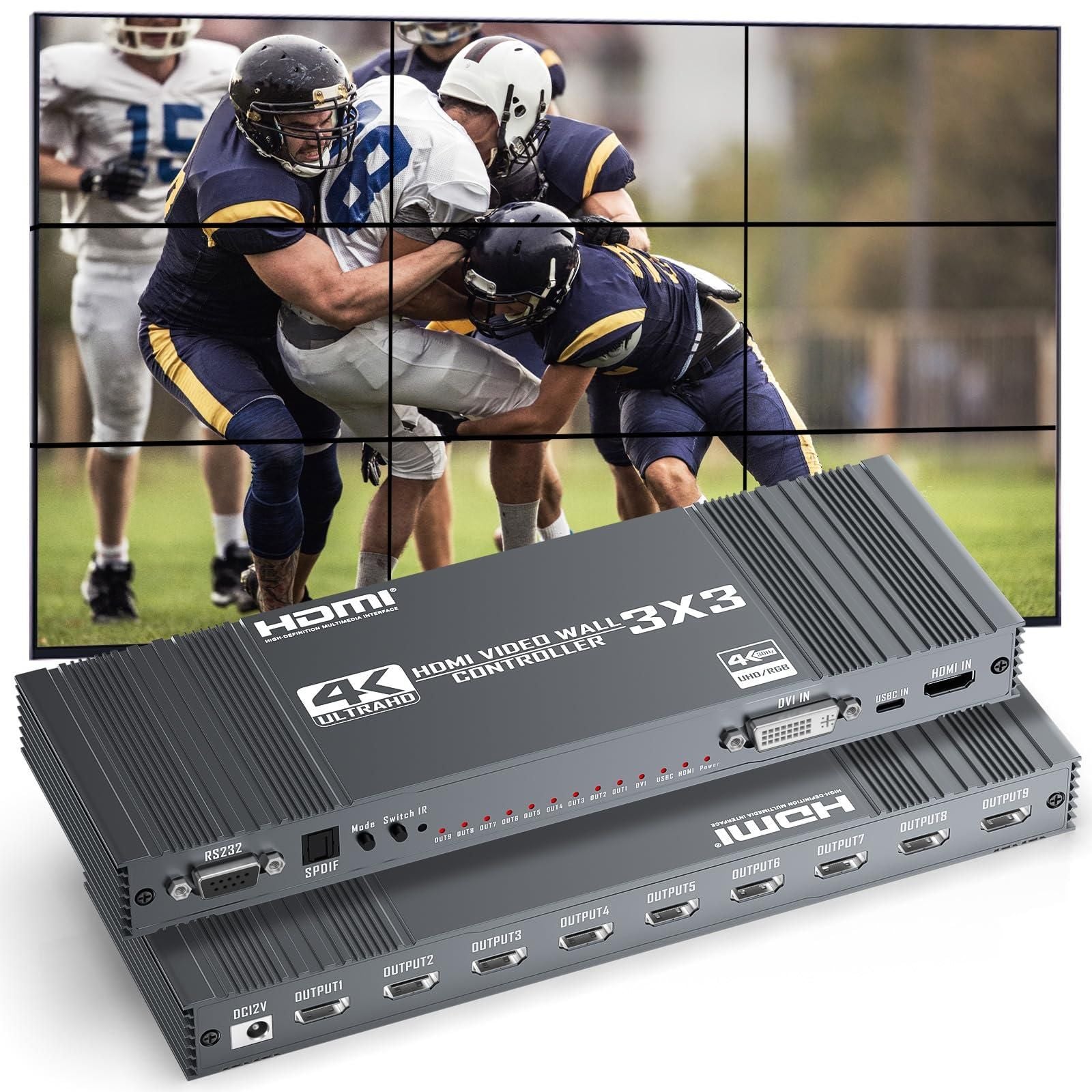

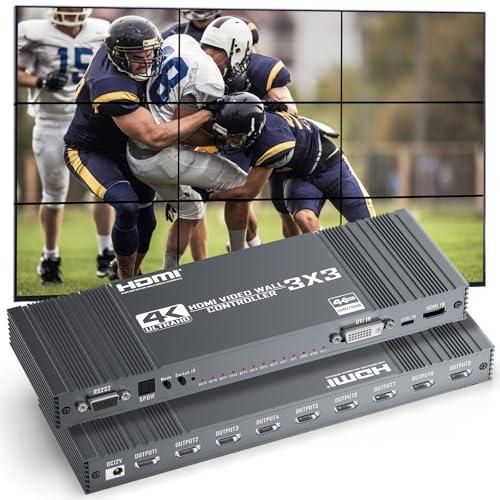

- Connect a single HDMI or DVI source and display content across a 3×3 grid of 9 screens, creating a unified large-format visual experience with synchronized audio and video

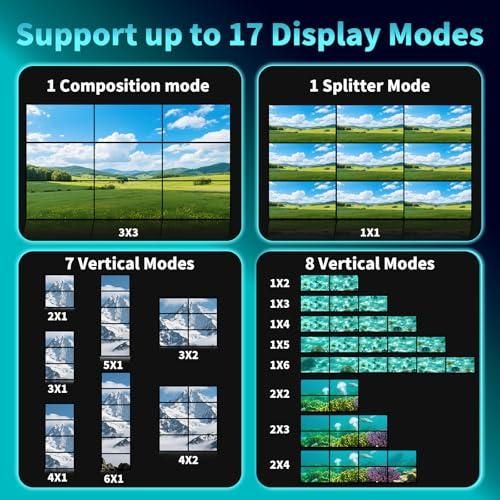

- Choose from 17 stitching modes including 2×1, 2×2, 2×3, 3×1, and 3×2 configurations to match your installation setup and display requirements

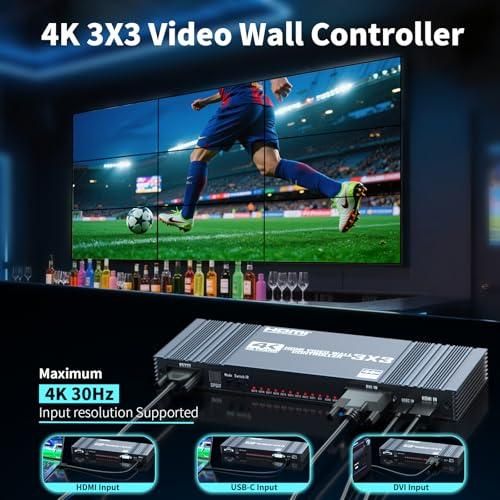

- Accept 4K@30Hz input and output a fixed 1080p@60Hz signal across all 9 HDMI outputs for smooth, reliable visual performance
- Rotate the entire displayed image by 180° using the included remote control, ideal for unconal mounting orientations
- Extract audio separately through the optical fiber output to connect external speakers or amplifiers for enhanced sound

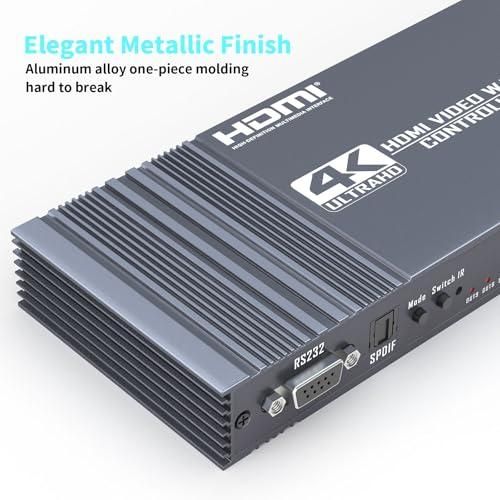

- Built with an aluminum alloy chassis for anti-interference stability, corrosion resistance, and effective heat dissipation
Specifications
Maximum Input Resolution: 4K@30Hz
Output Resolution: 1080p@60Hz (fixed across all HDMI outputs)

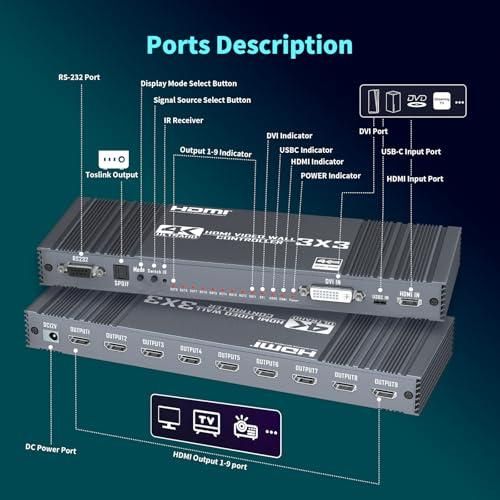

Input Ports: HDMI, DVI, USB-C
HDMI Output Ports: 9
Stitching Modes: 17
Supported Configurations: 2×1, 2×2, 2×3, 3×1, 3×2
Rotation: 180° (via remote control)
Audio Output: Optical fiber (5.1CH)
Control Methods: IR remote control, panel buttons, RS232
Housing Material: Aluminum alloy
Interface Finish: Gold-plated connectors
Package Contents
1 x Video Wall Controller
1 x Remote Control
Returns, Refunds and Replacements
Products received faulty, damaged, or not as described are eligible for a return, refund, or replacement in accordance with local consumer laws. We are committed to ensuring all products meet the standards of quality and reliability expected by our customers. Please note that we do not accept returns or provide refunds for change of mind. We encourage you to carefully consider your purchase to ensure it meets your needs and expectations.
Delivery Timeframe
Delivery is approximately 5-10 business days (excluding weekends and public holidays).
